ITPC 200

Large touch screen for interactive packhouse environments

The ITPC-200 builds on the ITPC-100 concept with a large touch screen, embedded processor board, dual ethernet, expandable I/O, built-in dual RFID card readers.

Key features

Choice of Intel based or ARM processor boards

Quad core processors with an option of 4GB or 8GB RAM

18.5 inch 5-poiny touch screen

Durable sheet metal enclosure

Integrated dual RFID card readers

Dual ethernet ports

3x RS-232 port for legacy systems communications

External buttons for automated quick actions

WebGUI to configure stations remotely, including rebooting

Integrated VNC for remote desktop support

Vesa 100mm mounting

Enclosued connections

Embedded Linux operating system

ITPC 200 in action

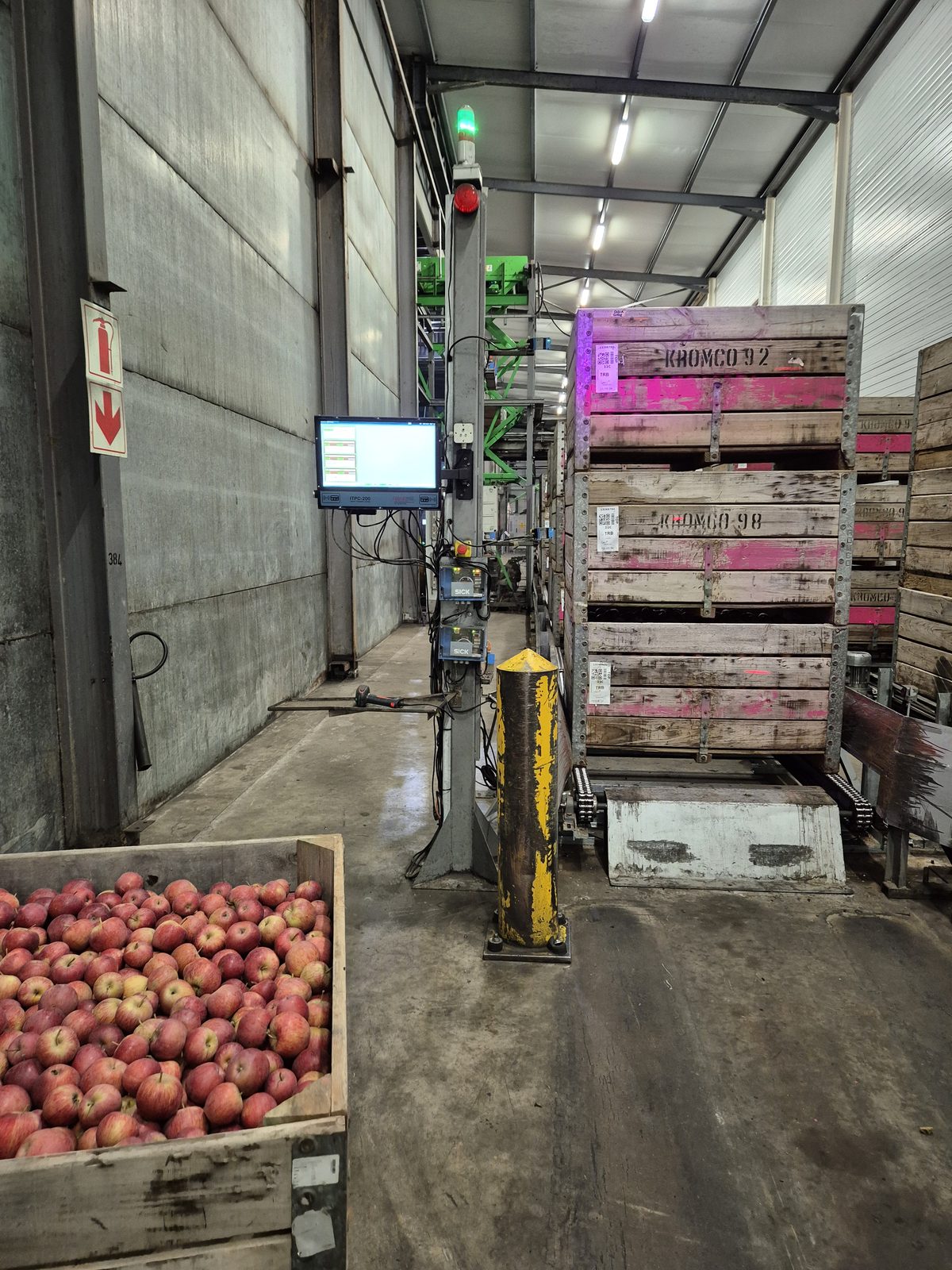

ITPC 200 — bin-tipping line station — ITPC 200 operator station overseeing the bin-tipping line.

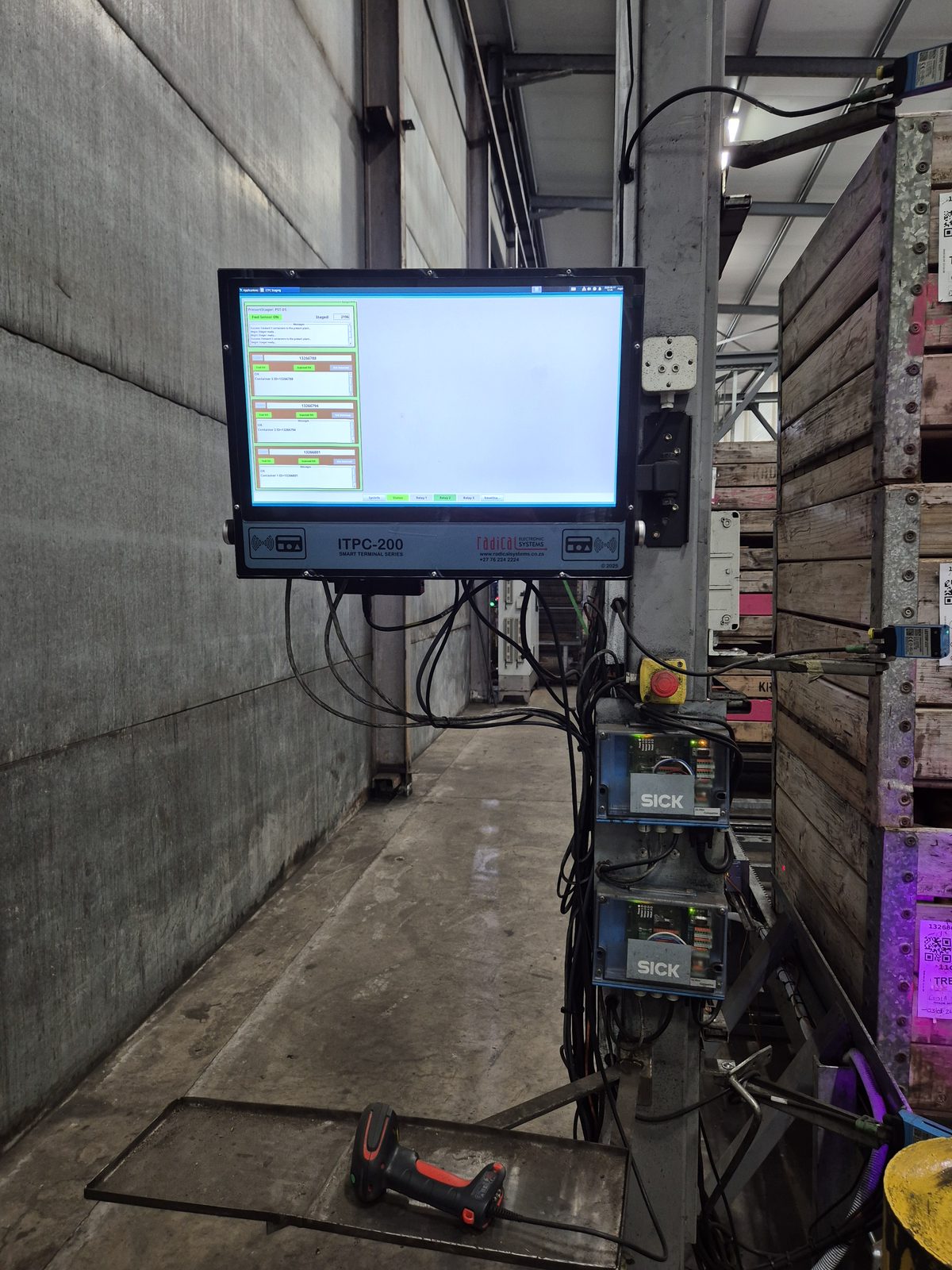

ITPC 200 — infeed scanning station — ITPC 200 driving the infeed scanning station with overhead SICK scanners.

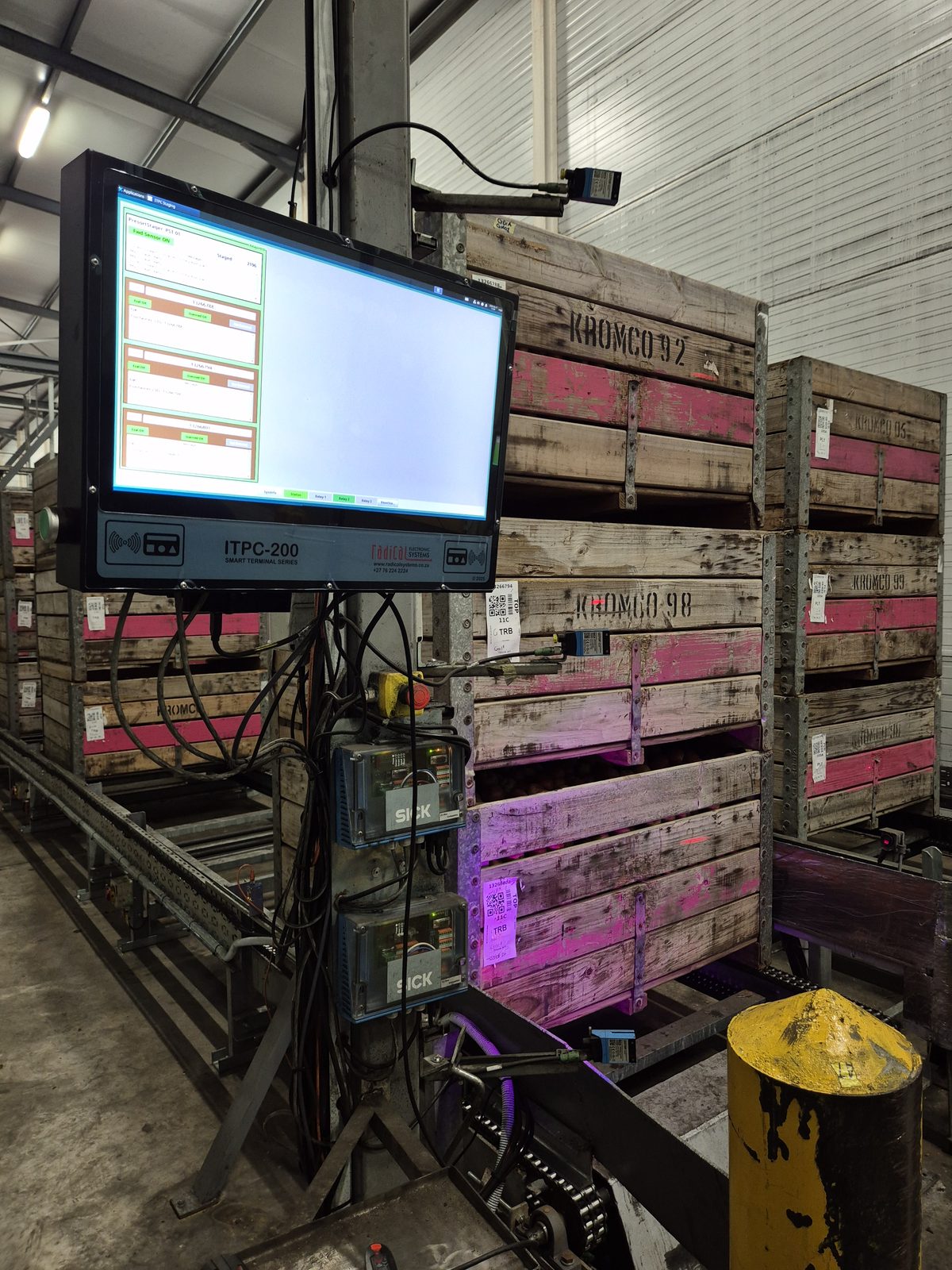

ITPC 200 — pallet infeed — ITPC 200 at the pallet infeed beneath the barcode scanner array.

Applications

Pre-Sort Staging — automate your bin in-feed via the built-in RS-232 ports or additional ethernet port

Carton weighing and labelling — precision capture at the line with direct integration to scale heads and labelling software

Production line monitoring — automated quality checkpoints, operator prompts

Logistics and tracking — facility-wide barcode scanning, bin staging, and dispatch coordination

Dynamic labelling — accurate carton labelling without wasting expensive labels

Stock movement — fixed point stock scanning

Group Worker incentives — track group workout output accurately

Interactive Dashboards — touch screen enable user to interact with the dahsboard

User Terminal — works perfectly as a normal user terminal with touch screen

Packhouse-grade design

The Idustrial Terminal series PCs are designed specifically for the demanding packhouse environment. Examples are pre-sort plants where bin feeding occur at 0 degree celcius and at a very shigh humidity. The ITPC-200 peripherals make it a verstile I/O solution with PC like features. The large touch screen is perfectly suited for operator interaction.

Central Management

Our Robot SCADA & IOT Server software provides a central management portal to setup your fleet of ITPCs. Each ITPC’s functionality is configured providing an application profile and transaction URL either to the Robot server or to Third-Party software. IT Managers can quickly change parameters on the ITPC and use our integrated VNC support to have a view of the remote station’s screen.

Ready to get started?

Talk to our engineering team about deploying the ITPC 200 in your operation.
