Robot T430

Industrial-grade fixed medium terminal — Extensive software options, browser rendered applications to native solutions

The Robot T430 is a rugged industrial LAN terminal, based on the Raspberry Pi CM4, designed for the demands of fruit packing house environments. It carries our Linux application platform forward on current hardware - with support for scales and barcode scanner with various application profiles to choose from. The device comes with an extensive software ecosystem, easy to use backend web GUI, various software boot options from Desktop, Native Robot App to Browser as default startup.

Key features

Raspberry Pi Based Compute Module 4 with Broadcom BCM2177 quad-core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5Ghz

2GB to 4GB RAM and 16GB to 32GB EMMC flash, depending on the model

Industrial-grade ruggedized construction for harsh packhouse environments

Passive Power over Ethernet (POE) for simplified installation

Optional integrated barcode scanning powered serial ports for automated data capture

7" Capacitive touch display with toughend glass and 5 point touch

Gigabit ethernet RJ45 and passive POE support, 12 to 28V DC

2 x USB 2.0 ports

2 x RS-232 port optional

Realtime clock with battery backup

Five user buttons programmable as navigation keys or shortcuts

RFID reader for 125KHz

Optional I/O extension for relays and optical inputs

Web UI to setup your application

T430 in action

Robot T201 — packing line operator station — Operator station running the packing application profile.

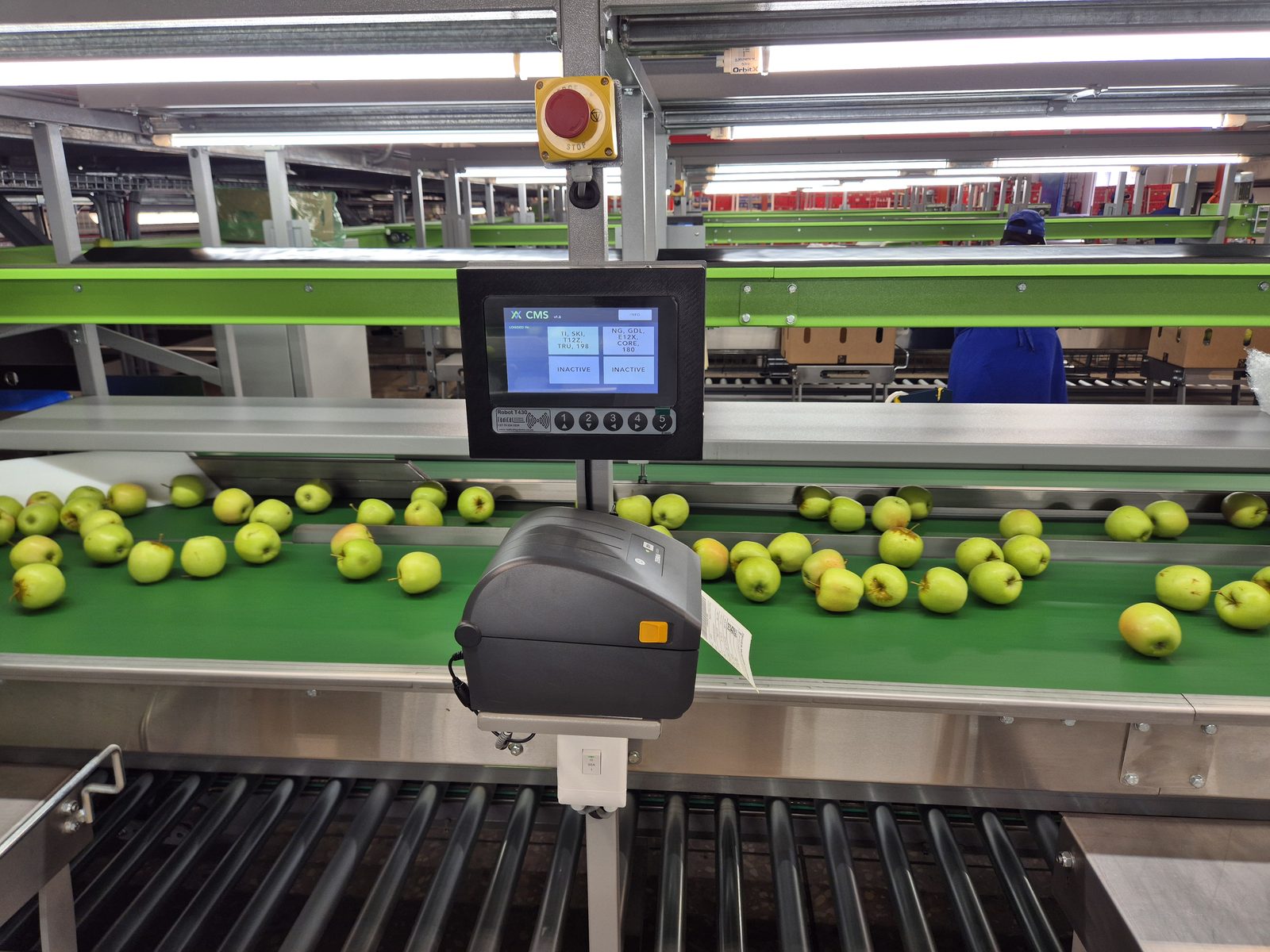

Robot T201 — quality grading point — QC point with operator selecting fruit grade.

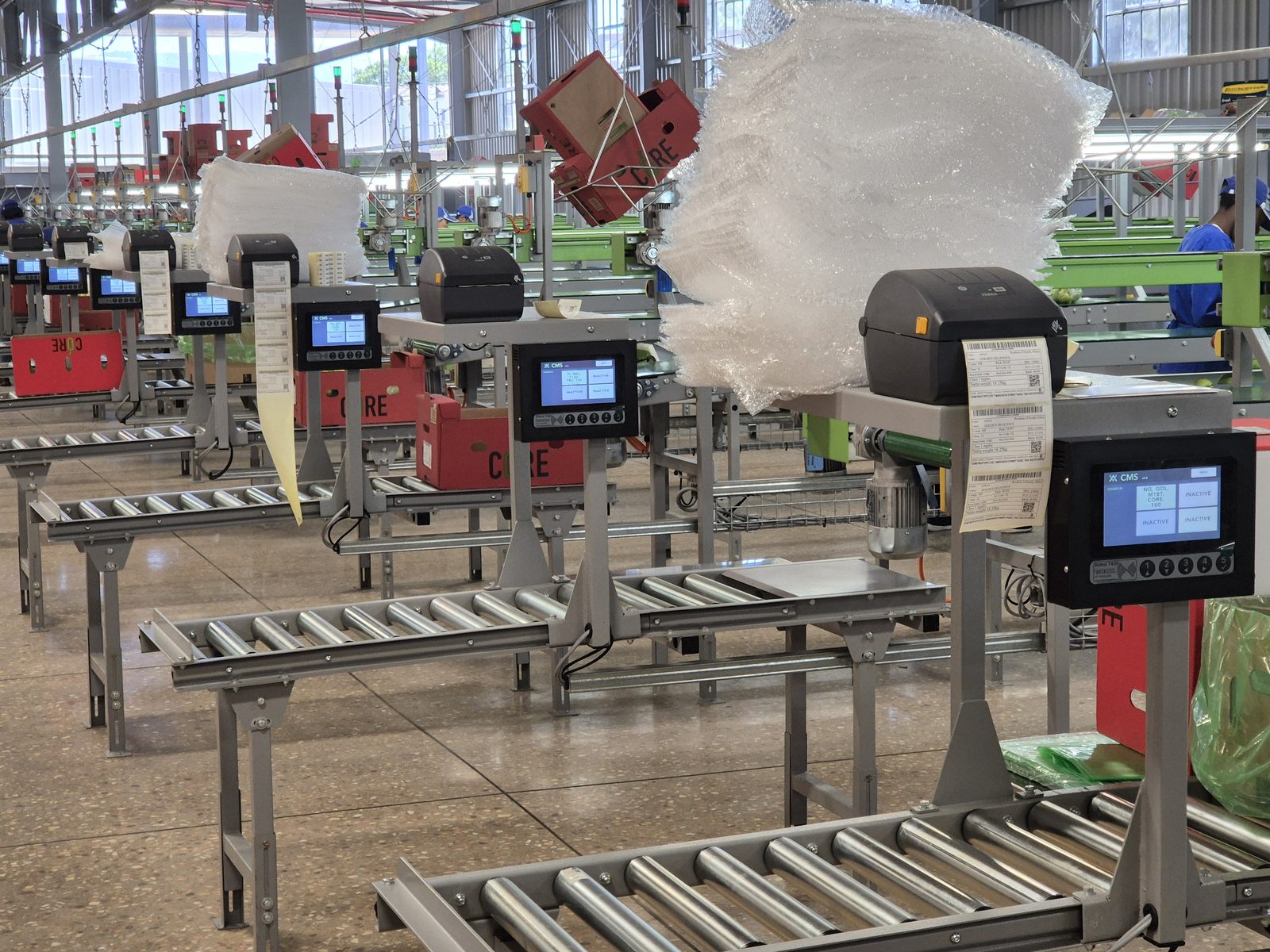

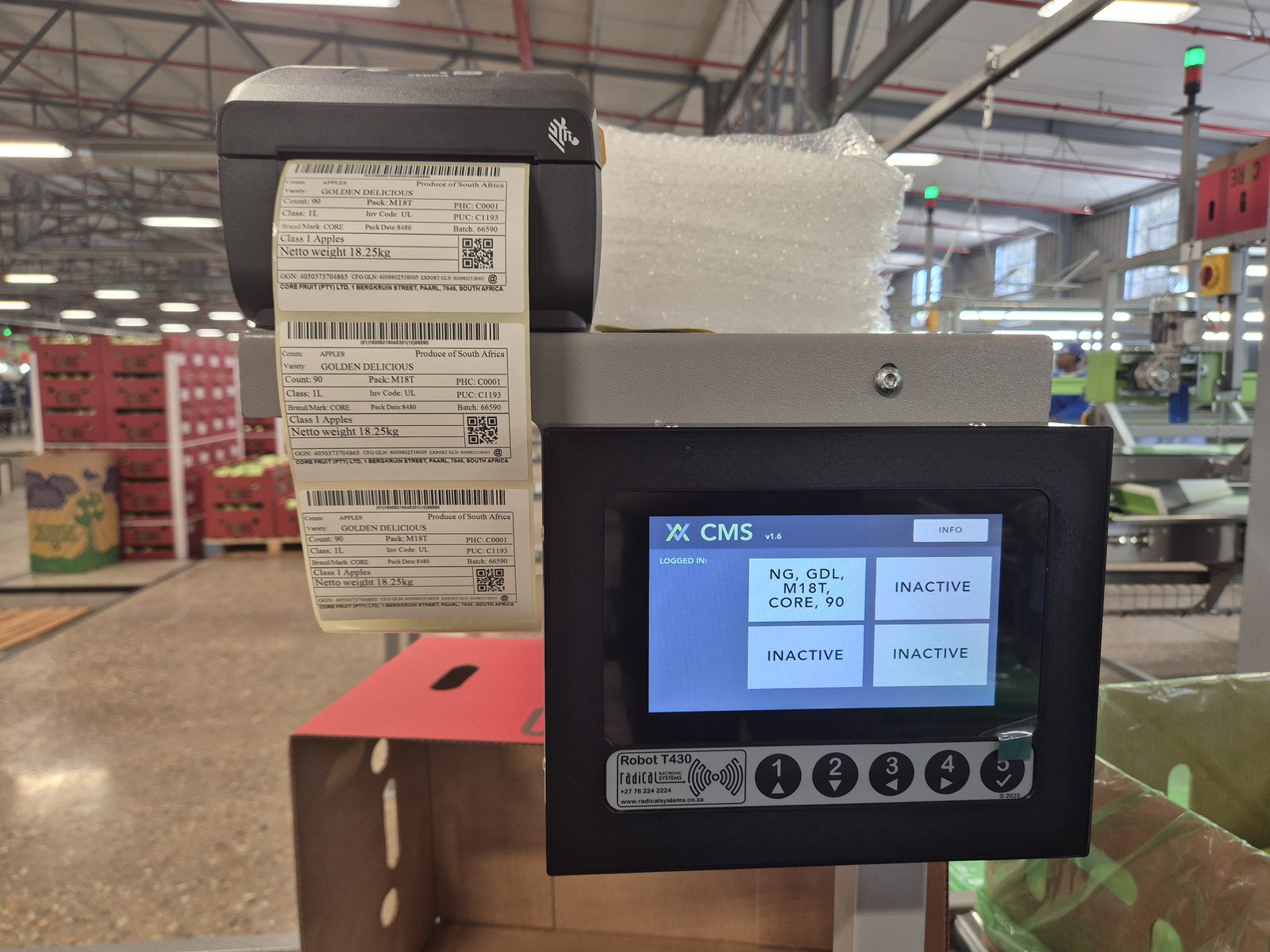

Robot T201 — weighing & labelling — Carton weighing and label-printing station.

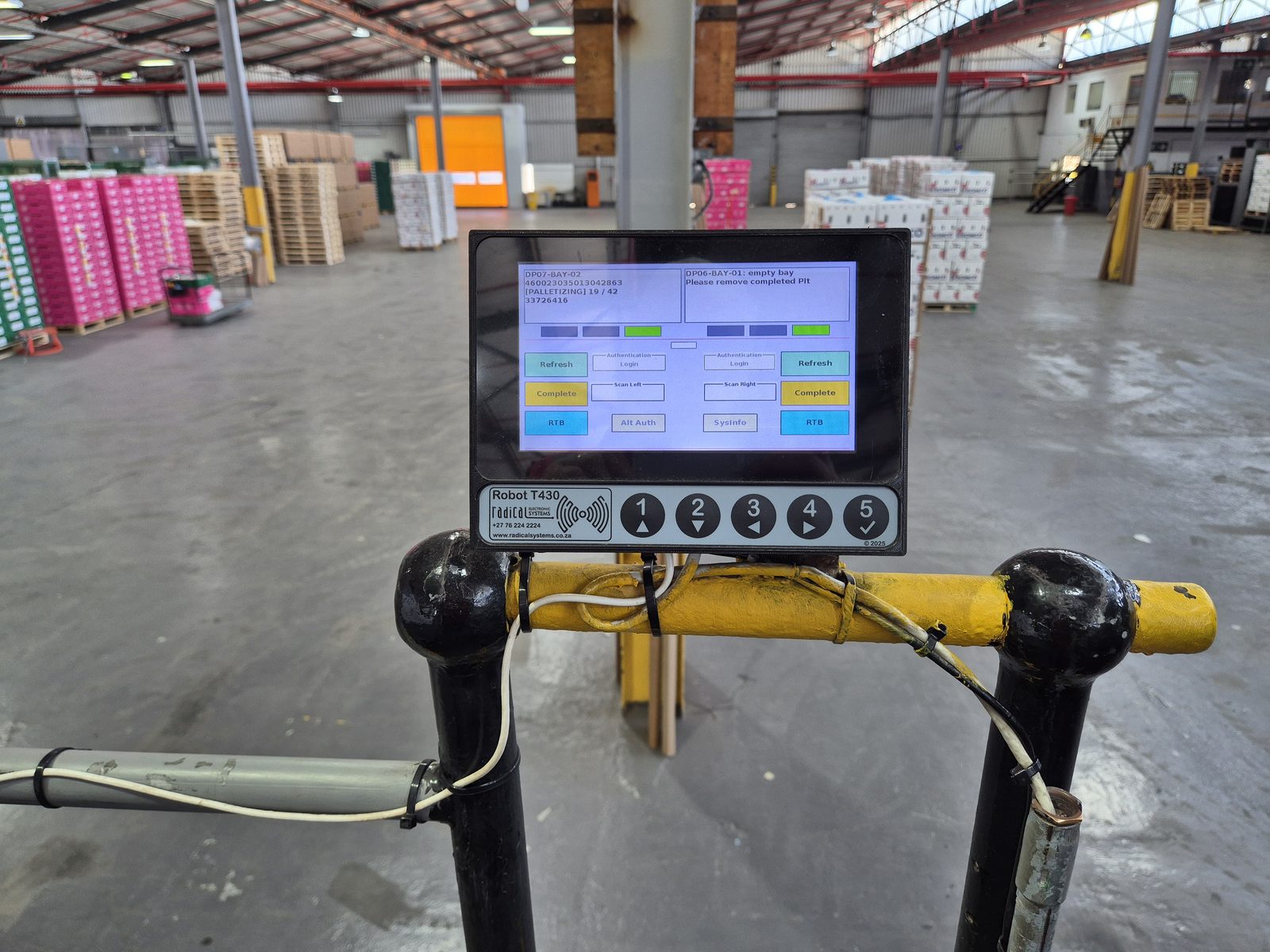

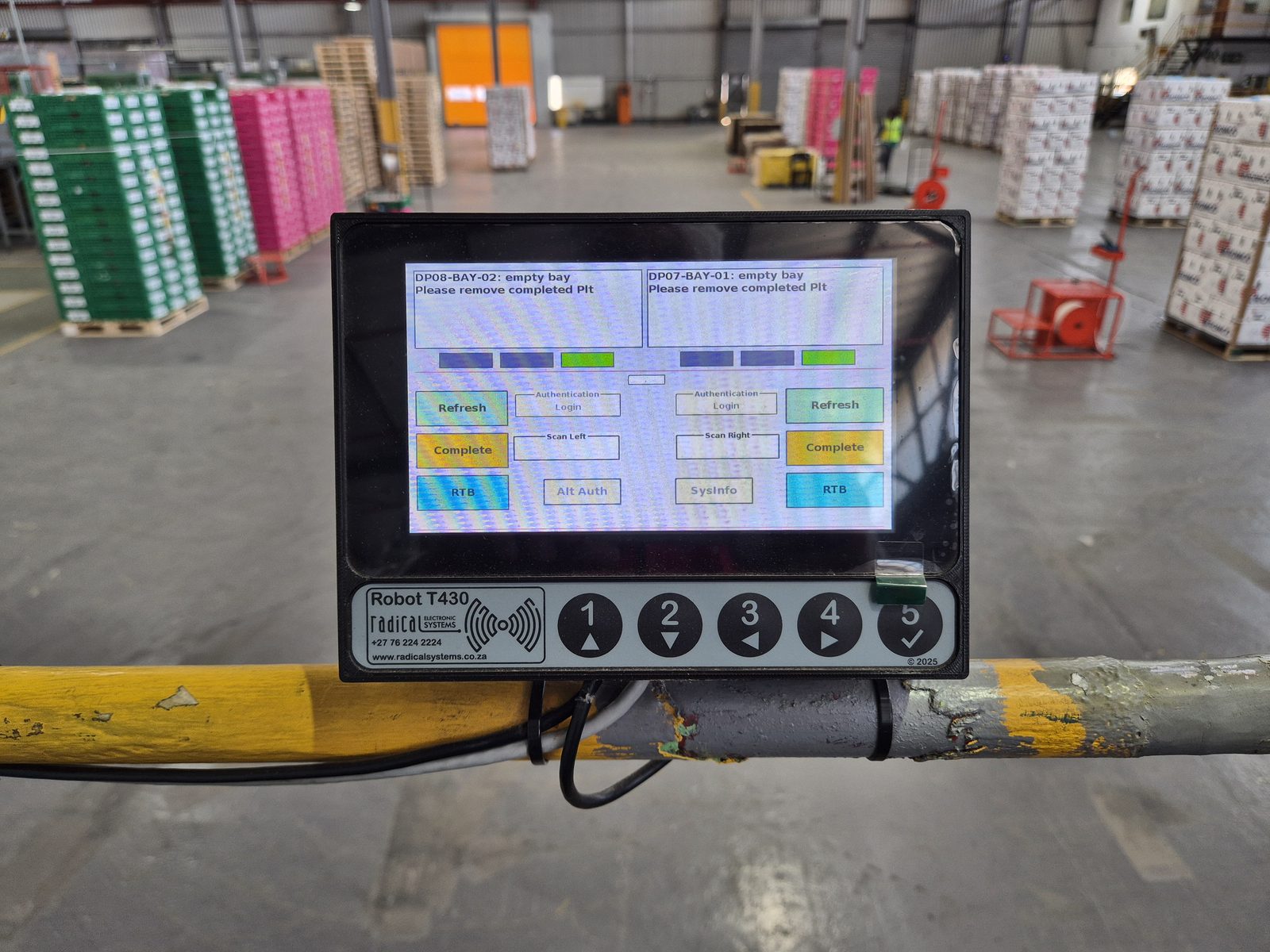

Robot T201 — palletizing — Palletizing station tracking carton stack build-up.

Robot T201 — time & attendance — Operator key-port login at shift start.

Applications

SOLAS Scale — high-precision packhouse weighing stations

Carton weighing and labelling — precision capture at the line with direct integration to scale heads and labelling software

Production line monitoring — automated quality checkpoints, operator prompts

Logistics and tracking — facility-wide barcode scanning, bin staging, and dispatch coordination

Palletizing stations — carton stacking done right, with realtime stack build-up

Dynamic labelling — accurate carton labelling without wasting expensive labels

Time & attendance — keep track of your workforce

Stock movement — fixed point stock scanning

Worker incentives — track workout output accurately

Packhouse-grade design

The T430 series are medium LAN based terminals designed to simplify human interfaction with IT backend server software. Various softwaresolution scenarious are supported of which browser

Transactions are HTTP based JSON messages with payloads describing each action. Multiple application profiles are supported ready to perform a variety of tasks, like packing terminals, dynamic labelling, QC points and scales. The T202 is engineered from the ground up for production environments. Ruggedised mechanicals, an operator-grade display, and POE-friendly networking mean a single Ethernet run delivers both power and data — keeping installations clean and reducing the cabinet footprint.

Making IT work!

The Robot architecture (hardware, firmware, software & server) was desiged to solve many challenges on the packhouse floor. They can run stand alone, as a fleet, communicating with their own server, and communicating with Third-parties. We have a long history of seemless integration with Third-party software, solving the puzzle of how you can connect your workforce to your IT system. A consitent API spesification ensures reliable communication, while offering a web browser UI provides simple integration to any Third-party with a webserver.

Central Management

Our Robot SCADA & IOT Server software provides a central management portal to setup your fleet of robots. Each robot’s functionality is configured providing an application profile and transaction URL either to the Robot server or to Third-Party software. IT Managers can quickly change parameters on the robot and use our propriertary Remote-Terminal-Protocol to have a view of the remote station’s screen, including keypad and peripheral interaction.

Communication & connectivity

Simple IT — boot into the built-in webbrowser and you can talk to any Third-party with a webserver.
Modern integration — JSON-based messages over HTTP plugs into packhouse ERPs, traceability systems, and the Robot SCADA & IOT Server out of the box.
Integrated Power for Barcode Scanners — bin and carton tracking, label printing, and real-time monitoring participate in the same data fabric as the rest of the facility.

Ready to get started? Don't know how to scale!

Talk to our engineering team about deploying the Robot T430 in your packhouse.
